The Tailgater

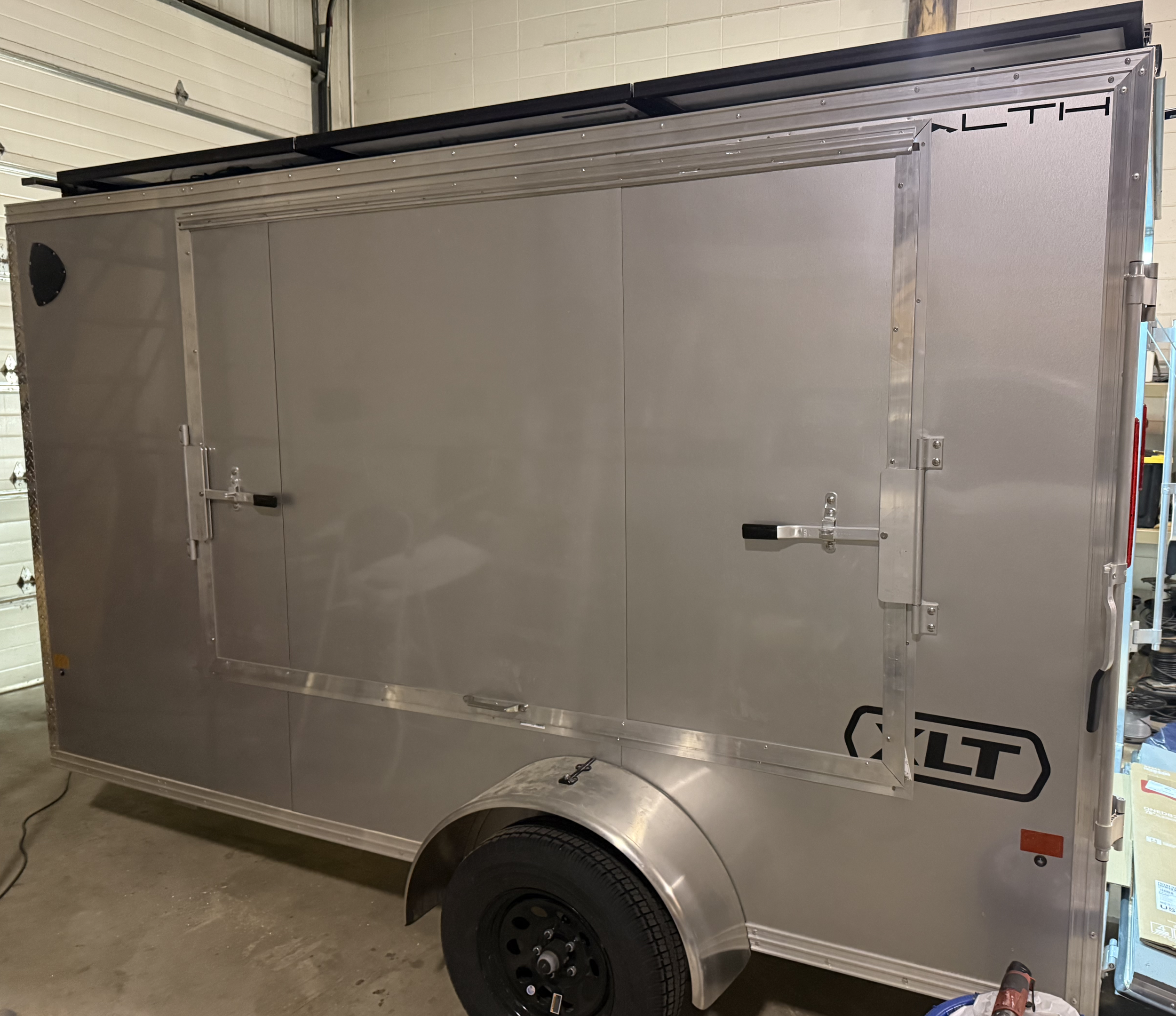

A 2026 Stealth Pro Line Aluminum 7’x12’ V-Nose Cargo Trailer is:

👉 A fully enclosed trailer you tow behind a vehicle
👉 Made of aluminum (lighter, no rust)
👉 With a V-shaped front (better aerodynamics + storage space)

• It can supply up to 10,000 watts of electricity at one time.

• That’s enough to run things like lights, refrigerators, outlets, and some larger appliances—depending on load.

• It converts DC power (from batteries or solar panels) into AC power (what your home uses).

• “Off-grid” means it works independently of the utility grid—no power company required.

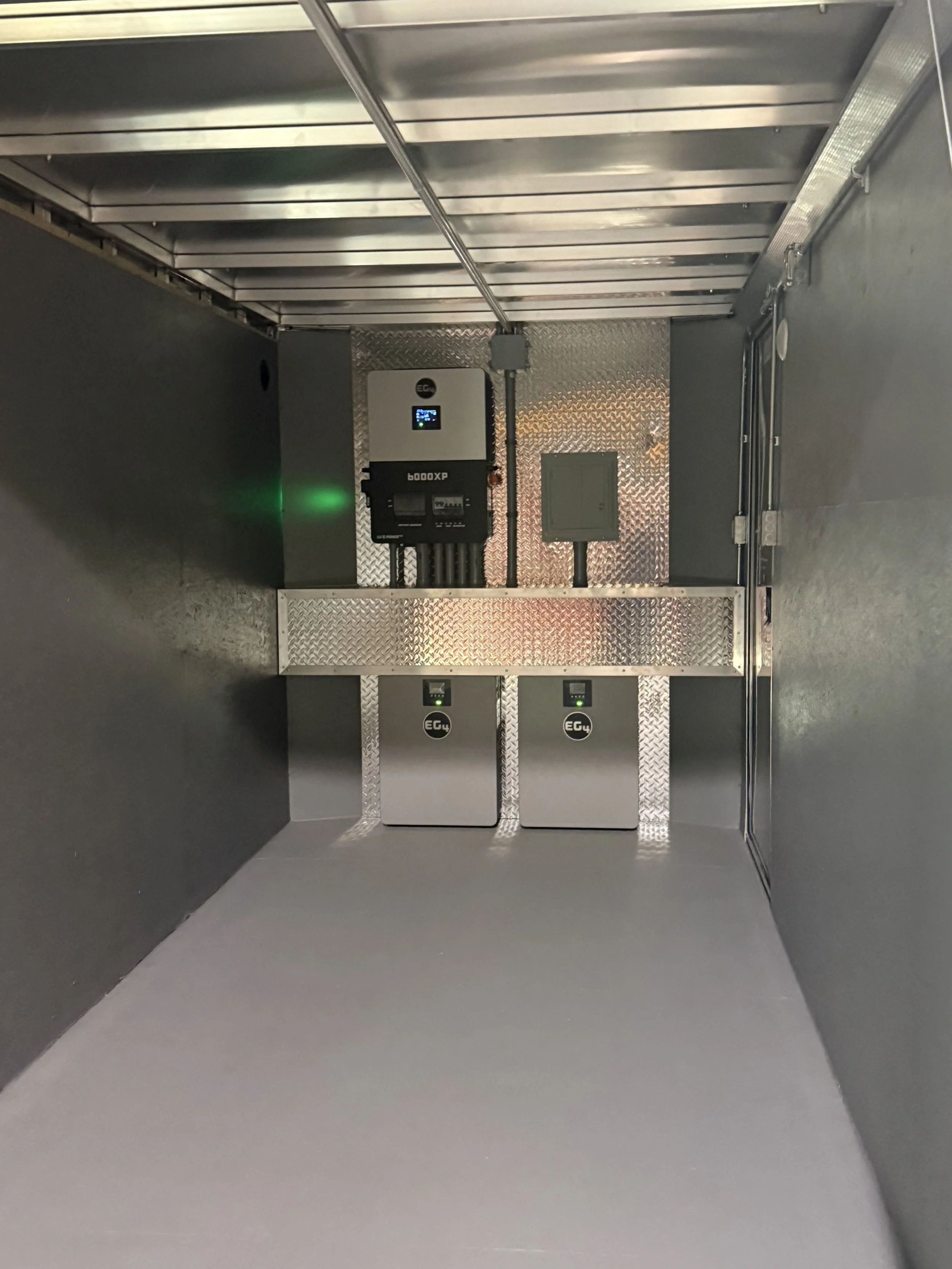

Two EG4 WallMount Indoor 100Ah Lithium Battery

You have 2 battery units, each with these key specs:

• 100Ah (amp-hours) → how much energy it can store

• 48V system (51.2V nominal)

• ≈ 5.12 kWh per battery

👉 So with two batteries, you get:

• ~10.24 kWh total storage

If the inverter is the engine, these batteries are your fuel tank.

With ~10 kWh storage, you could roughly run:

• Fridge → 1–2 days

• Lights + outlets → a full day+

• Well pump (intermittent) → fine

• Microwave / coffee maker → short bursts

• They store electricity (from solar or generator)

• Then feed that power into your inverter

• The inverter turns it into usable house power

This is basically a battery charger on steroids.

• Takes AC power (grid or generator)

• Converts it to DC power

• Charges your 48V lithium batteries

👉 So instead of relying only on solar, you can force-charge your batteries anytime.

This is the aluminum racking/rail system that your solar panels bolt onto.

👉 In plain terms:

• Panels don’t attach directly to your roof

• They attach to rails

• Those rails attach to roof mounts (lagged into rafters)

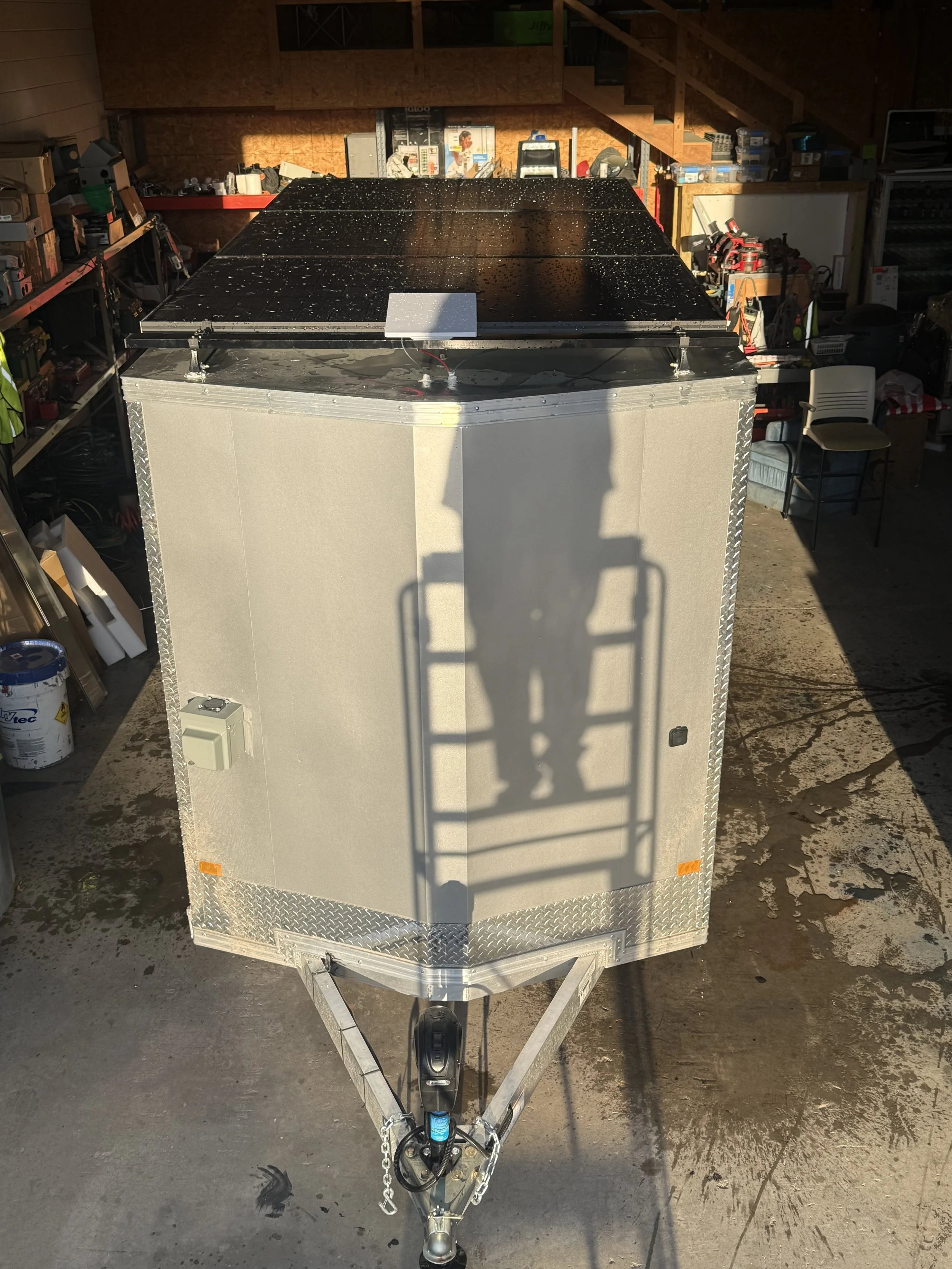

You have:

• 3 solar panels

• Each produces about 480 watts

👉 Total system from these panels:

• 3 × 480W = 1,440 watts (1.44 kW)

This is basically a breaker panel (subpanel).

👉 It:

• Takes incoming power (from your inverter or other source)

• Splits it into multiple circuits

• Protects each circuit with breakers

Interior or exterior LED strip/light bar fixtures for the trailer

👉 It means three electrical receptacles (places to plug things in)

Typically:

• Standard 120V outlets (like in a house)

• Could be duplex (each has 2 plug spots)

👉 It means:

• One switch to turn lights on/off

• Typically controls:

  • Interior trailer lights

An electric tongue jack that mounts on the front of a trailer and raises/lowers it automatically using power.

⚡ Plain-English meaning

Instead of cranking a manual jack:

👉 You press a button
👉 It lifts or lowers the trailer tongue for you

And this one specifically:

• Is rated for 5,000 lb tongue lift capacity

• Runs on AC power (120V)—not just 12V battery power

It’s a 30A, 120V RV outlet (TT-30R) mounted in a weatherproof enclosure.

👉 Think of it as:

• A “parking spot” for RV power

• A permanent or semi-permanent plug-in station

Starlink is a satellite internet system that uses a dish to connect to low-earth-orbit satellites.

👉 It gives you:

• High-speed internet anywhere with sky view

• No need for cable, fiber, or cell towers

• Works great for RVs, job sites, rural areas

📡 What the “mount” is

The mount is simply the hardware that:

• Holds the Starlink dish in place

• Positions it for a clear view of the sky

• Secures it against wind, movement, and vibration

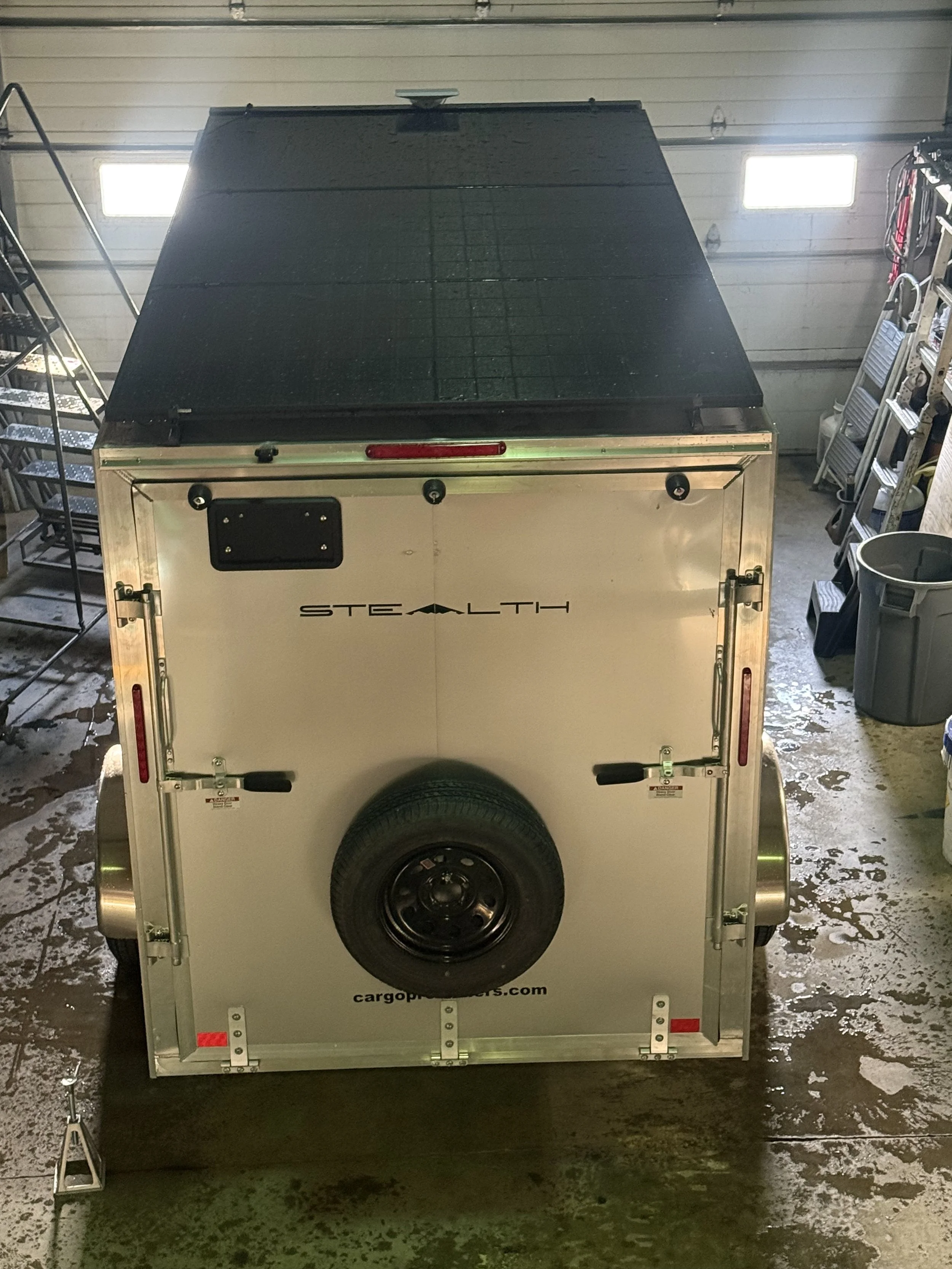

You get:

• A tire bolted to the trailer frame

Usually mounted:

• On the front tongue

• On the rear door

• Or on the side wall/frame rail

It’s basically:

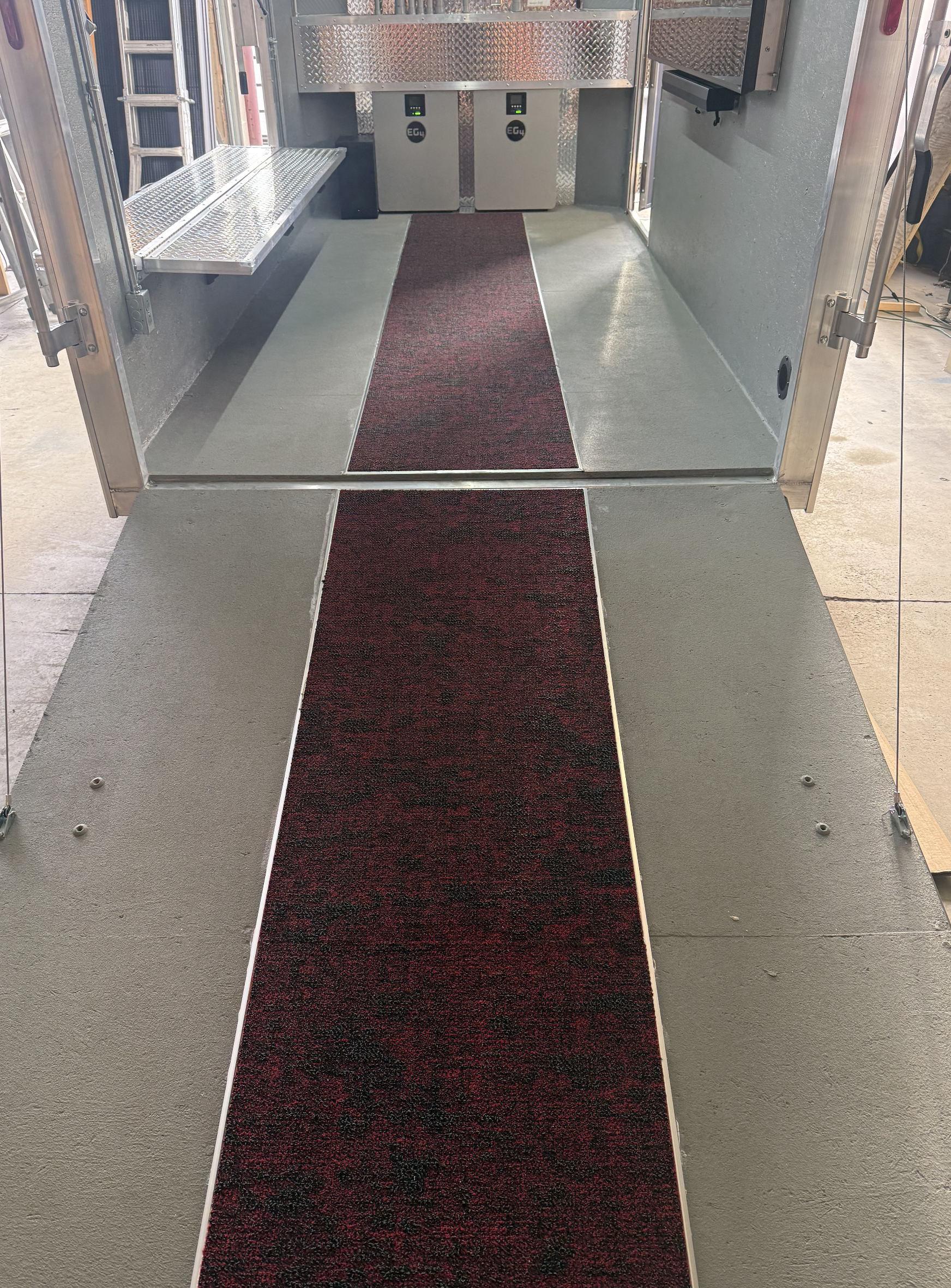

👉 Paint for floors + built-in “grit” texture

So instead of a smooth painted surface, it dries with a slightly rough, sandpaper-like finish for traction.
